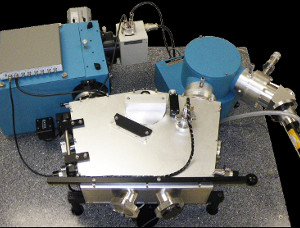

Purged or Vacuum Ultraviolet Analytical Spectrophotometer for fluorescence, luminescence and more
Excitation with Very Short Wavelengths!

Technical Specifications
Technical Data sheet describing VUV Universal Spectrometer

Related Accessories
-> VUV Deuterium
-> VUVAS+Plus
-> VUV Si Diode
-> VUV Sample Chambers

Spectrophotometer for material science and display / lighting research

Deep UV Luminescence Spectrophotometer

McPherson is pleased to announce improved optical characterization systems for spectral measurements from the vacuum ultraviolet (VUV) to the near infrared. The vacuum ultraviolet universal spectrophotometer is an optical test system for samples that emit light, like phosphors or photo- and electro-luminescent crystals. It can measure reflectance, transmission and photoemission over its complete working, 120 nanometers to 2.2 microns. Options are available to extend the range even more. The user-friendly sample chamber includes high efficiency toroidal optics for focused excitation and sensitive detection. It can operate purged or under vacuum and can interface to commercial cryogenic and heated sample mounts. Auxiliary ports are in the sample area for addition of HV leads for electrical excitation, auxiliary sample illumination by x-ray sources or conventional lasers, and output to diverse and even fiber connected spectrometers.

Spectrophotometer Applications:

More information: The McPherson vacuum ultraviolet universal spectrophotometer features an easily interchangeable five-position sample holder. Samples index while the system is under vacuum. Spectral excitation and emission wavelengths may be freely set and scanned. A high throughput monochromator with Deuterium and/or Xenon source provides tunable excitation. Emission detection is CW mode; lifetime (persistence) signal acquisition modules are available. For high sensitivity detection the system uses cooled photomultiplier and/or direct detection CCD array detectors.

Flexible configurations for diverse data: The VUV universal spectrophotometer can operate purged or under vacuum depending on the nature of the measurement. It readily interfaces to commercial cryogenic and heated sample mounts. These single sample mounts allow measurements vs. temperature or at set temperatures as low as liquid Helium and as high as 300 degrees Kelvin. Additional provisions exist to add electrical or high voltage for electrical sample probe or excitation. By flexible design, you can illuminate samples with x-ray sources or lasers, and direct output to diverse and even fiber connected spectrometers.
