Vacuum UV Tunable Light Source

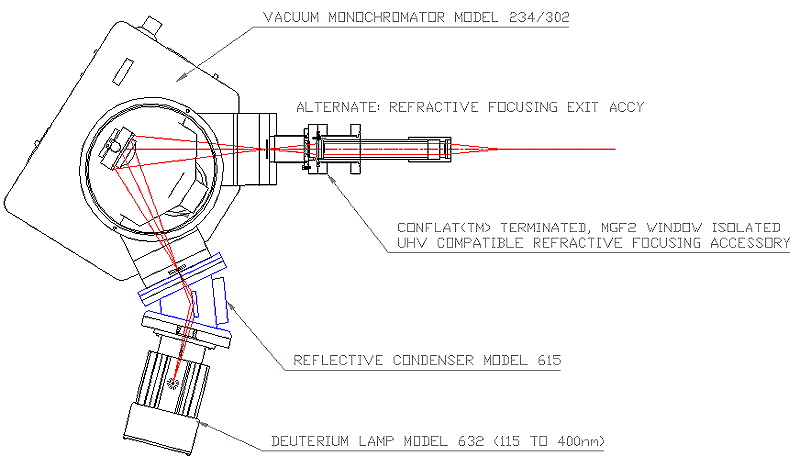

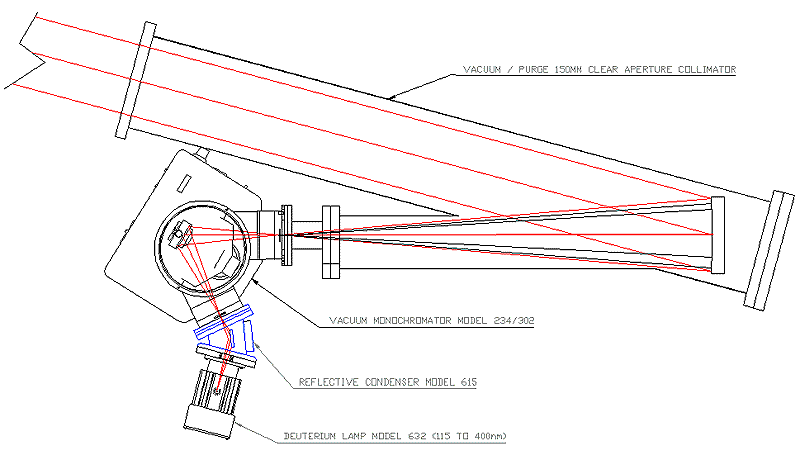

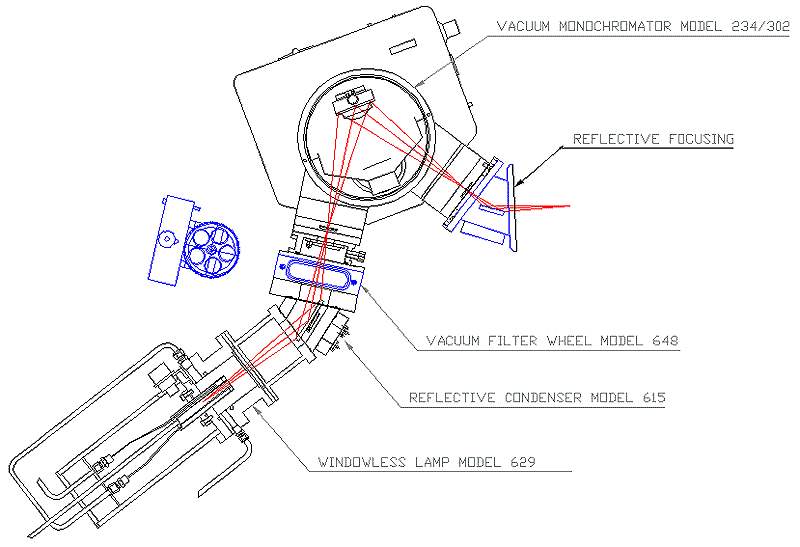

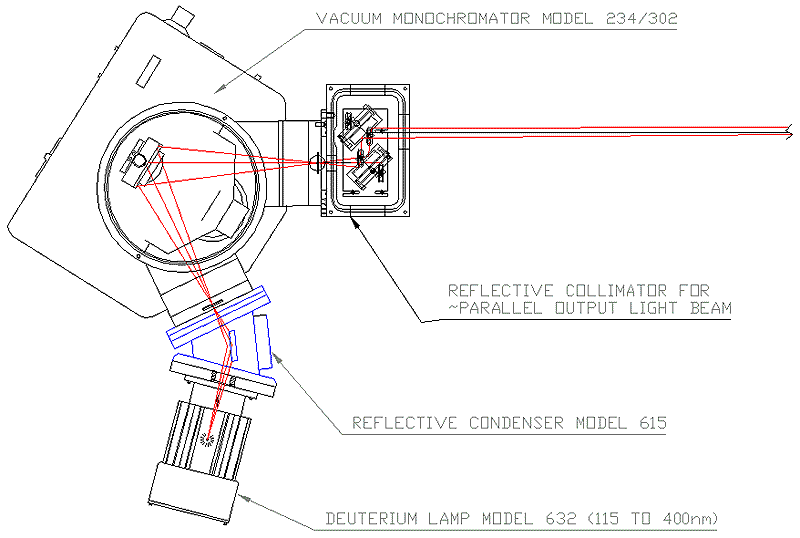

Numerous possibilities exist for coupling monochromatic light source systems to experimental systems. For work in the vacuum, and parts of the extreme ultraviolet, we offer a series of 'normalized' solutions. While these can't fit every experimental requirement, we use these as starting points when tailoring systems for you. For example, the combination: Model 632 Deuterium light source, Model 615 reflective condenser / energy optimizer, and Model 234/302 vacuum monochromator form a convenient and easy to use system for vacuum ultraviolet illumination or for spectrophotometry in the 120 to 350 nanometer region. Switching the source for the windowless Model 629 hollow cathode allows access to ionized-gas emission lines 30 nm and longer. We can tailor output optics for the wavelength or experimental requirements too.
Optical Design | Czerny Turner design Monochromator / Spectrometer |
Focal Length | 350 mm |
Aperture Ratio | f/4.8 (NA 0.1) |
Wavelength Range | refer to grating of interest for range |
Wavelength Accuracy | ±0.2 nm |
Wavelength Reproducibility | ± 0.05 nm (with 1200 G/mm grating) |
Grating Size | 68 x 68 mm (single grating holder, optional dual-grating turret) |
Slits | Micrometer adjustable width 0.01 to 4 mm, height settings from 2 to 20 mm |
Slit Locations | Axial and lateral, with optional port selection mirrors |
Focal Plane | 25-mm, multiply dispersion by the width of your detector for range |
Grating Groove Density (g/mm) | 3600 | 2400 | 1800 | 1200 | 600 | 300 | 150 | 75 | 50 |
Spectral Resolution at 312.6nm (nm, FWHM) | 0.02 | 0.025 | 0.035 | 0.05 | 0.1 | 0.2 | 0.4 | 0.8 | 1.2 |
Reciprocal Linear Dispersion (nm/mm) | 0.7 | 1 | 1.5 | 2 | 4 | 8 | 16 | 32 | 48 |
Wavelength Range from 185nm to | 430 | 650 | 865 | 1.3 um | 2.6 um | 5.2 um | 10.4 um | 20.8 um | 31.2 um |
First Order Littrow Blaze (nm) | 240 | 240 | 180 | 200 | 250 | 280 | 300 | 2 um | 600 |
holo | 300 | 250 | 300 | 300 | 300 | 500 | 3 um | 12 um | |
holo | 400 | 400 | 500 | 500 | 800 | 8 um | 14 um | ||
holo | 500 | 750 | 750 | 1.25 um | 10 um | ||||
750 | 1 um | 1 um | 2.5 um | 12 um | |||||
1 um | 1.8 um | 3 um | 4 um | ||||||
holo | holo | 4 um | 6 um | ||||||
8 um | |||||||||
