UV and plasma cleaning diffraction gratings

Wavelength Dependent Performance Loss in the Ultraviolet

We measured efficiency of a UV ozone-scrubbed and plasma (nitrogen) cleaned replicated diffraction grating. For the test part, reflected diffraction efficiency measurements improve with each cleaning, overall 12% improvement on average. Scanning electron microscope (SEM) images of the optical surface do not indicate structural change or damage.

measureable improvement in diffraction grating performance

Despite the title of this post DO NOT ATTEMPT TO CLEAN YOUR DIFFRACTION GRATING! We're reporting work done under controlled circumstances with the VUVAS vacuum UV analytical spectrophotometer that measures transmission, goniometric reflection and diffraction efficiency. It works to wavelengths short as 120 nanometers using vacuum or inert gas (nitrogen) purge. For best stability, we work with nitrogen purge. For windows and other samples, we've also been UV scrubbing and plasma cleaning for better measured results. The cleaning techniques combined with strict operating procedures provide opportunity to measure the real surface – not one changed by exposure to ambient humidity or other factors. Cleaning techniques have become very important in the deep UV, where results are usually improved.

With UV ozone-scrub and plasma cleaning together or separately, measured diffraction efficiency improved. Approximately 10% improvement was measured, across the board, after the cleaning sequence. Scanning electron microscope (SEM) images from a Phenom Pure show no change to groove profile or surface of the diffraction grating.

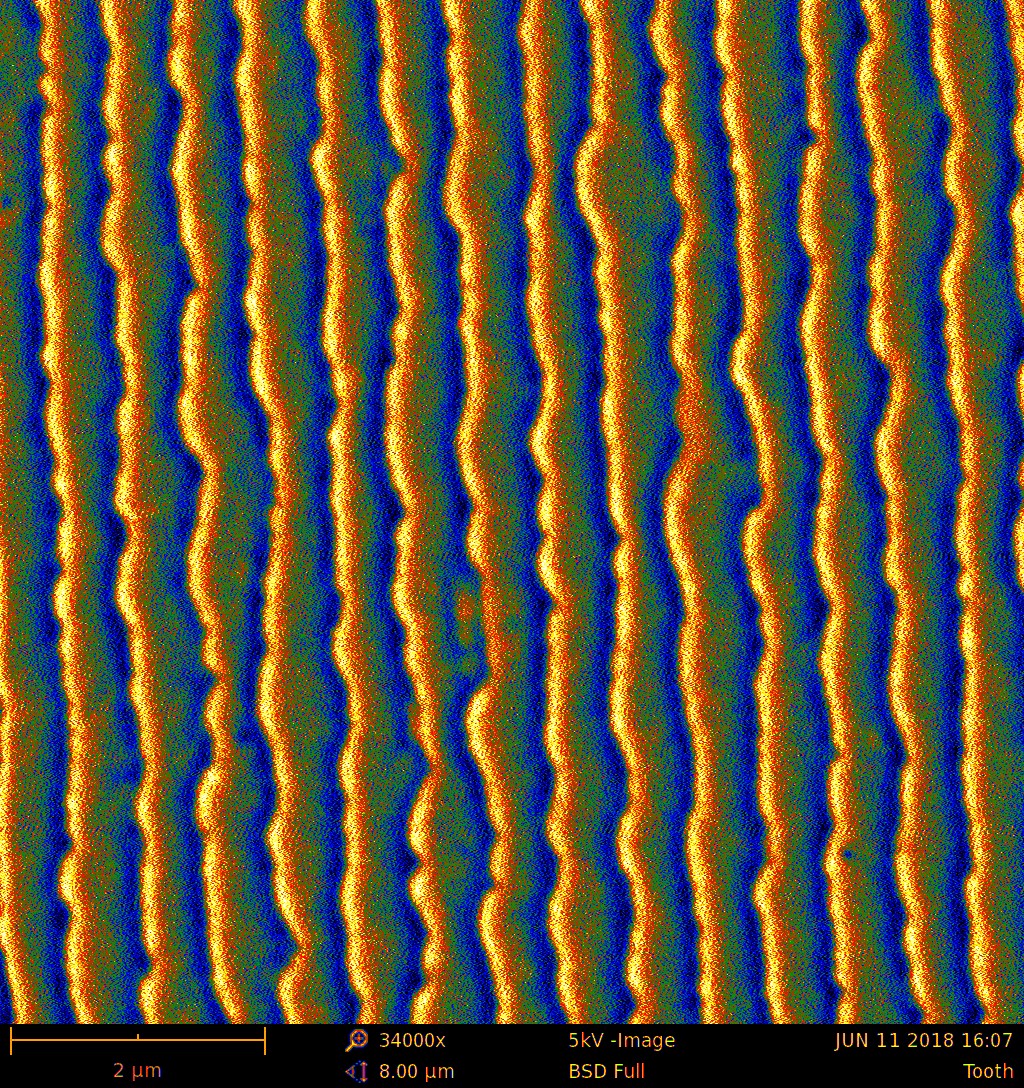

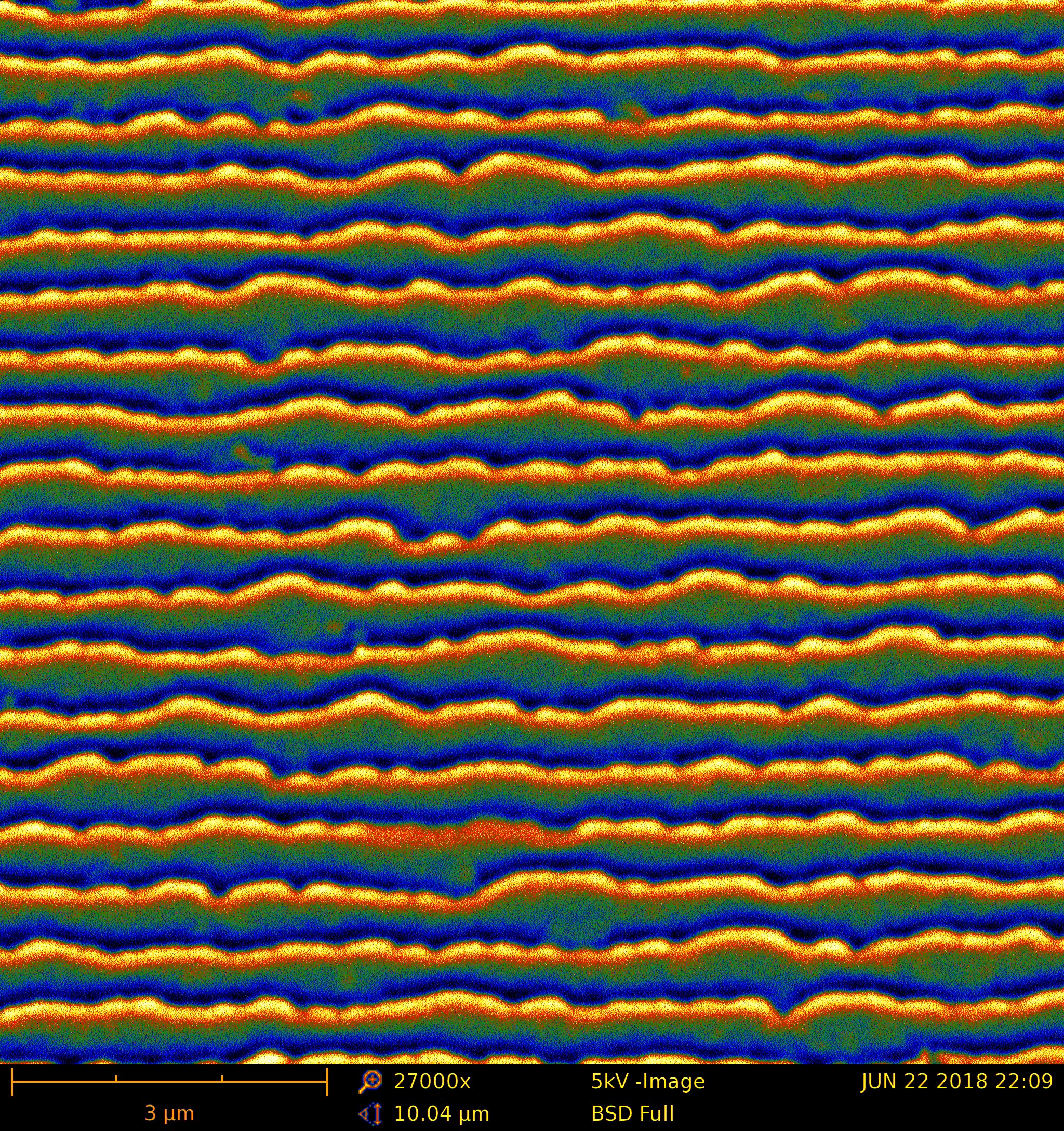

scanning electron microscope image of the grating's grooves before any cleaning attempts scanning electron microscope image of the grating's grooves after UV/ozone scrubbing scanning electron microscope image of the grating's grooves after UV- and Plasma cleaning

We do not recommend or normally attempt to plasma clean reflective optics. At this time, this series of tests is an exception. In the plasma cleaner, we’ve frequently seen coated surfaces behave like a dielectric and create an arc or discharge causing damage to coatings. During this series of tests and cleaning-cycles, no arcing occurred. This information also appears on the Monochromator.US blog page
